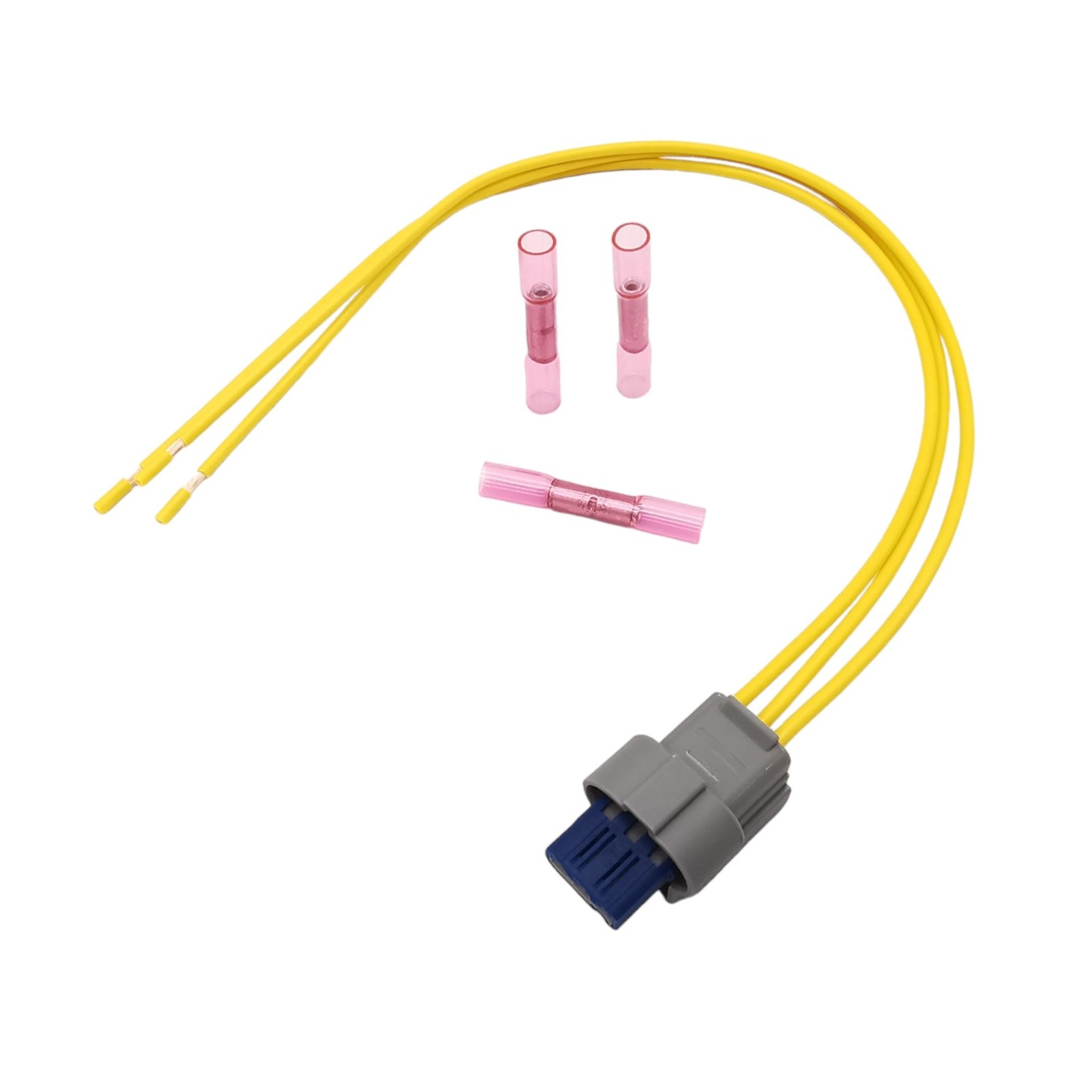

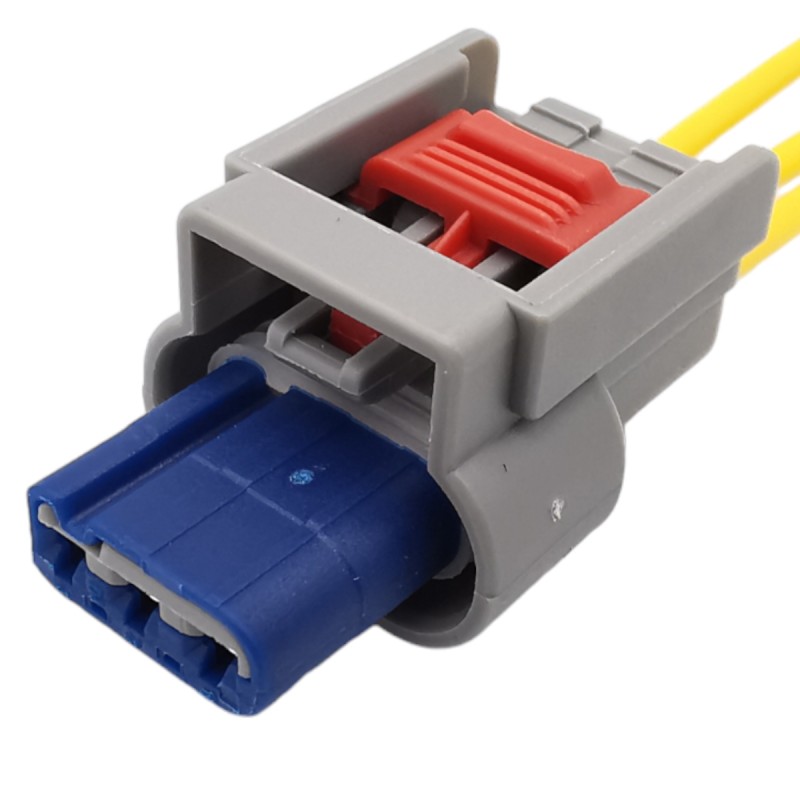

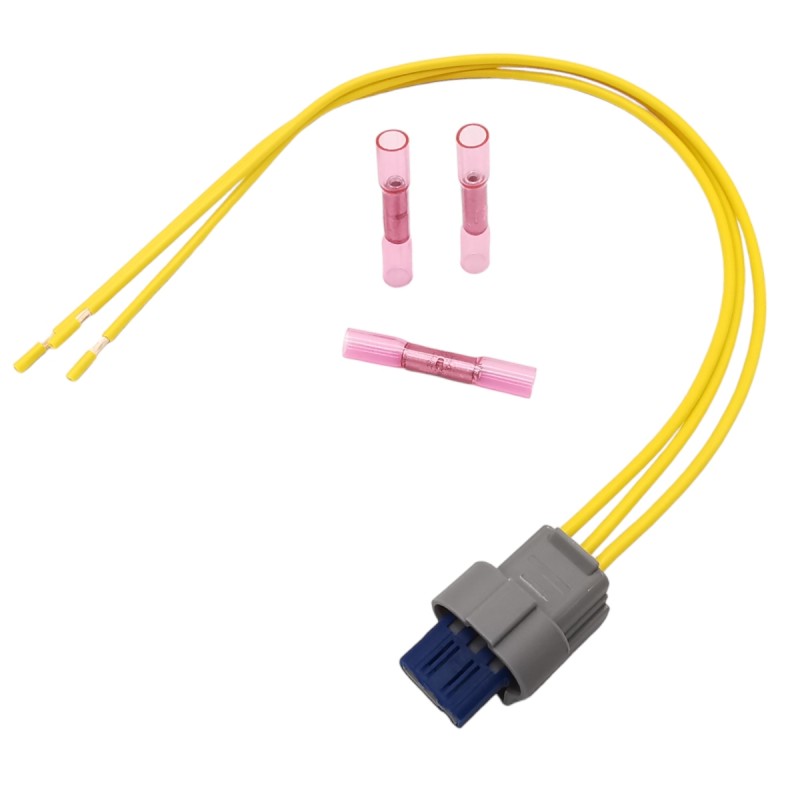

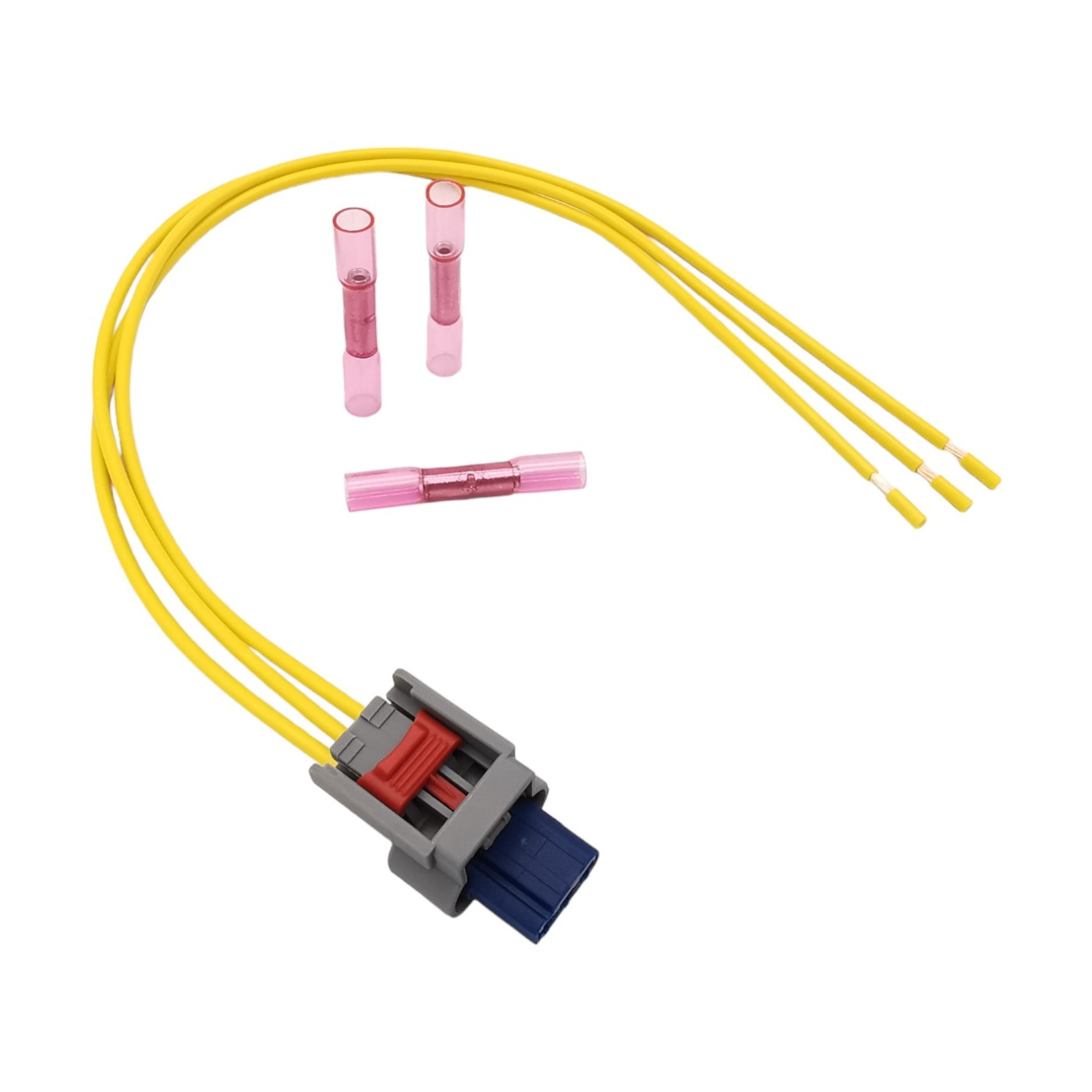

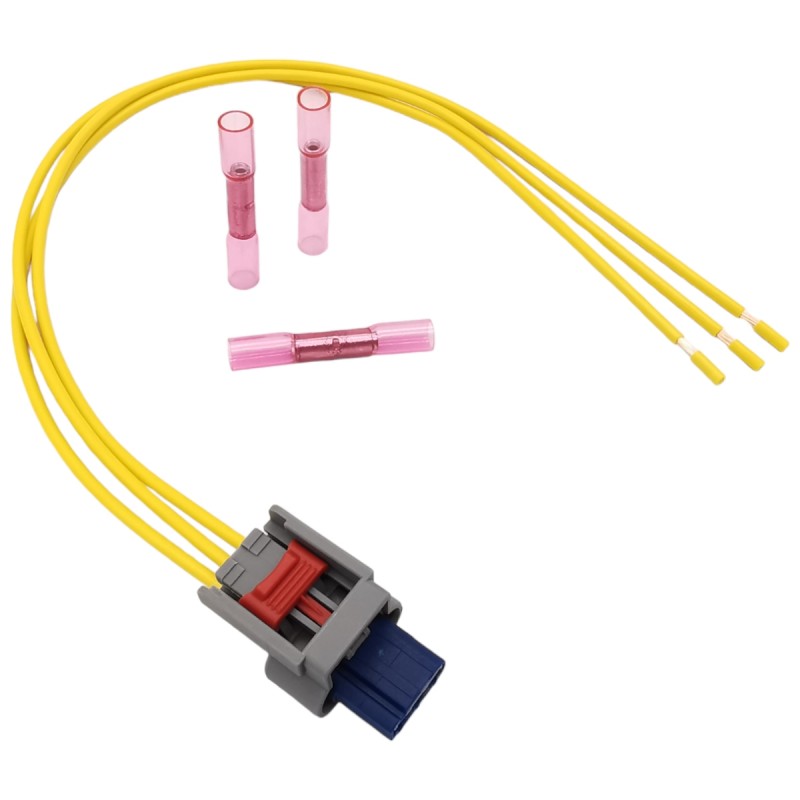

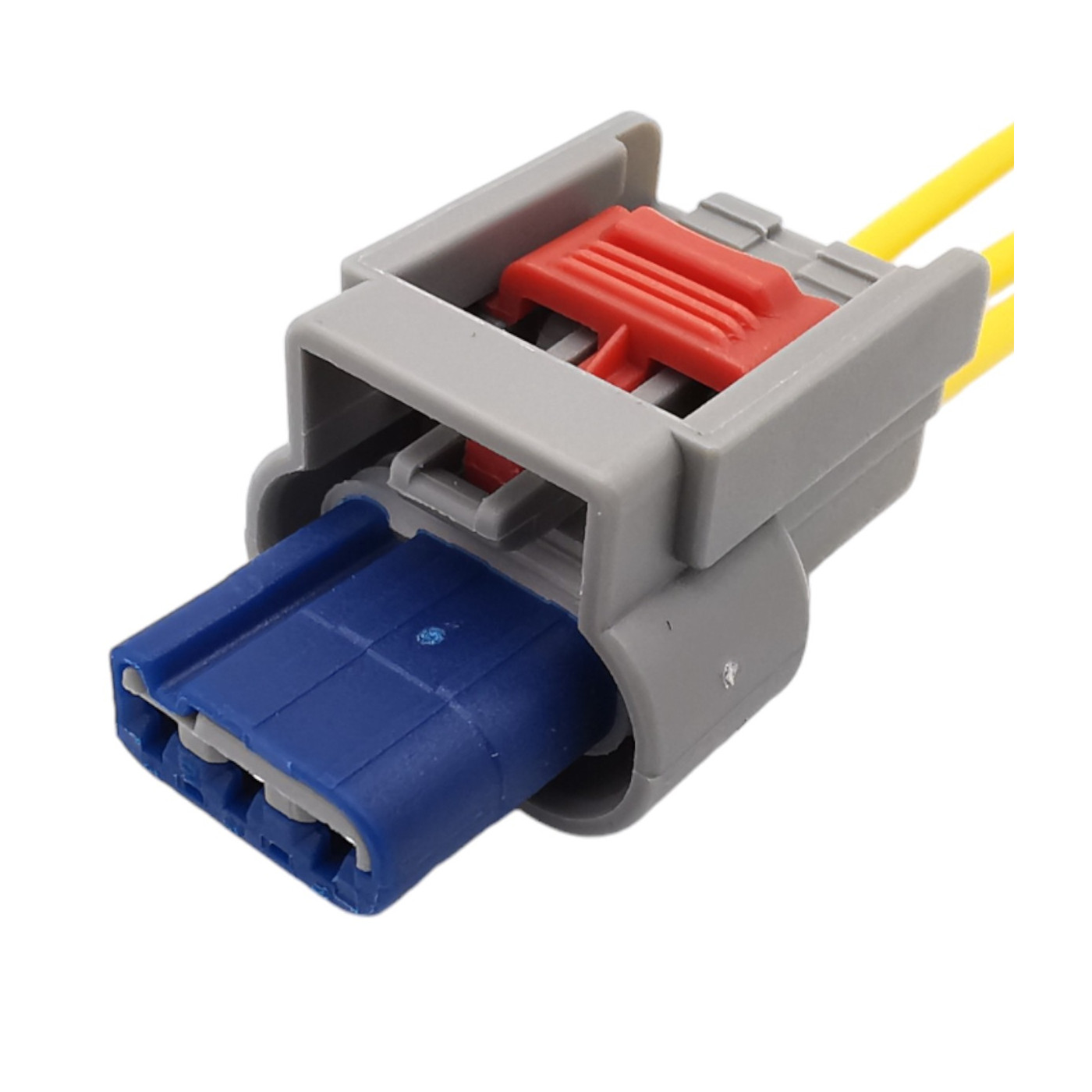

Chrysler, Dodge, Jeep, Fiat 3-pin ignition coil connector with wires

New repair kit—fully wired connector for the ignition coil:

CHRYSLER
200 (2007–2014) | 2.4L
300 (2006–2010) | 2.7L, 3.5L
SEBRING (2006–2010) | 2.0L, 2.4L, 2.7L, 3.5L

DODGE
AVENGER (2007–2011) | 2.7L, 3.5L
CHARGER (2006–2010) | 2.7L
JOURNEY (2008–2026) | 2.7L, 3.5L
NITRO (2006–2011) | 4.0L

JEEP
PATRIOT / COMPASS (2007–2017) | 2.0L, 2.4L

FIAT
FREEMONT (2011–2016) | 3.6L

Kit Specifications:

• Replacement
  connector
• Original pins
• FLRY-B cables – low-voltage automotive cable (FL) with reduced insulation thickness (R), made of polyvinyl chloride (Y), with an asymmetrical conductor (B), manufactured in Poland
• Number of cables: 3 (1.5 mm²)
• cable length: approx. 30 cm
• DSG CANUSA CRIMPSEAL II
  quick connectors with adhesive
• Price is per 1 piece

IMPORTANT:

Connectors vary in size, color, tabs, and pin types. To be 100% sure the product will fit, compare the part you have with the part numbers and photos in the description. Not sure? Send us a photo:

1. Unplug the connector from the module or sensor.

2. Take a photo from the front (head-on) so that the center of the connector and the pin layout are clearly visible.

Made in Poland
